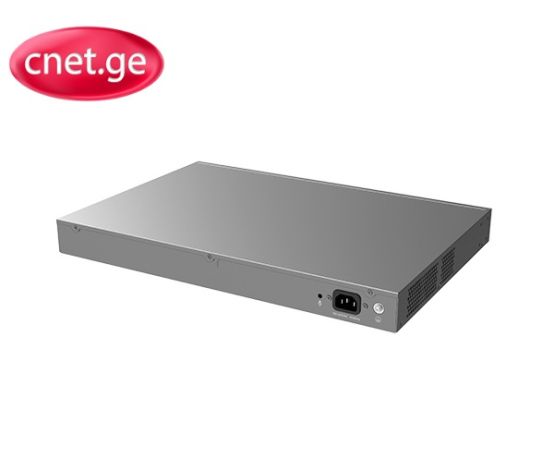

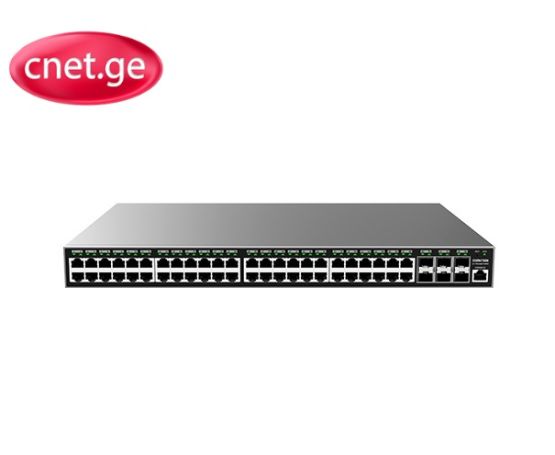

Grandstream GWN7806P Enterprise Layer 2+ Managed Network Switch, 48-Ports, PoE 48-Ports

Network protocols IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x PoE Standards IEEE 802.3af/at Gigabit Ports 48 SFP+ 6 ports Note. The DAC cable is supported, the length should be less than 5 m The maximum number of supported modules SM-10G: 6 MM-10G: 6 RJ45-10G: 3 Note. RJ45-10G modules must be inserted at intervals Console 1 Number of PoE ports 48 Built-in power supply 470 Watts Max. power per PoE port 30 Watts Max. The total power of PoE is 400 watts PoE Standards IEEE 802.3af/at Additional ports 1 vent hole Redirection mode Accumulation and transfer Total bandwidth without blocking 108 Gbit/s Switching speed 216 Gbps The redirection rate is 160.704 Mbps Packet Buffer 16 Mbps Network delay <4µs Switching • 32 thousand static or dynamic MAC address records with filtering • 4 thousand VLANs, port-based VLANs, IEEE 802.1Q VLAN tags, Voice VLAN • Virtual VLAN interface • GVRP (under development) • Aggregation of 27 channels • Spanning tree, 64 instances for STP/RSTP/MSTP Routing Static routing Multicast broadcast • IGMP Snooping • MLD Snooping • MVR (in development) QoS/ACL • Port prioritization • Prioritization scheme • Priority schedule, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic management • Speed limit • 4 thousand. ACLs for Ethernet, IPv4 and IPv6 DHCP DHCP Server, DHCP Relay, DHCP Option 82, 60, 160 and 43 Service CPU and Memory monitoring, SNMP, RMON, LLDP and LLDP-MED, Backup and Recovery, System Log, Diagnostics, including Ping, Traceroute, Port Mirroring, UDLD (TBD) and Copper Test Safety • User hierarchy management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication, including RADIUS, TACACS+ • Storm Control • Port Isolation, Port Protection, Sticky MAC • MAC address filtering • IP Source Guard, protection against DoS attacks, ARP Inspection • DHCP Snooping • Loop protection, including BPDU protection, root protection (in development) and loop detection (in development) • Kensington socket (for Kensington locks) Mounting Desktop, rack-mounted (rack brackets included) LED indicators 1 Three-color indicator for device monitoring and status indication 54 green data transmission indicators 48 Yellow PoE Power indicators (GWN7806P) Fan 3 Environmental conditions Operation: 0 to 45 °C, humidity: 10 to 90% (relative, non-condensing) Storage: -10 to 60 °C, humidity: 10 to 90% (relative, non-condensing) Dimensions 440 x 301 x 44 mm (L × W × H)
